Regular price$5,200.00
/

  • In stock, ready to ship
  • Backordered, shipping soon

Frame Features & Specifications

Fastest bike on the Trans-Germany 2018, 2nd at the Highland Trail 550 2019 and a recent 2nd place on the 2022 Tour Divide in very challenging conditions! The Divider can tackle any technical trails as well as fast dirt roads. The modern frame geometry fits 3 bottles, bosses for bolt-on top tube bag, Full Frame Bag or Racks and fenders.

While the Divider optimal tyre size floats between 2.0 to 2.4″, the massive frame clearance fits tyres up to 27.5×3.0″ or 29×2.8″ if you decide to add the “+” size comfort to your ride.

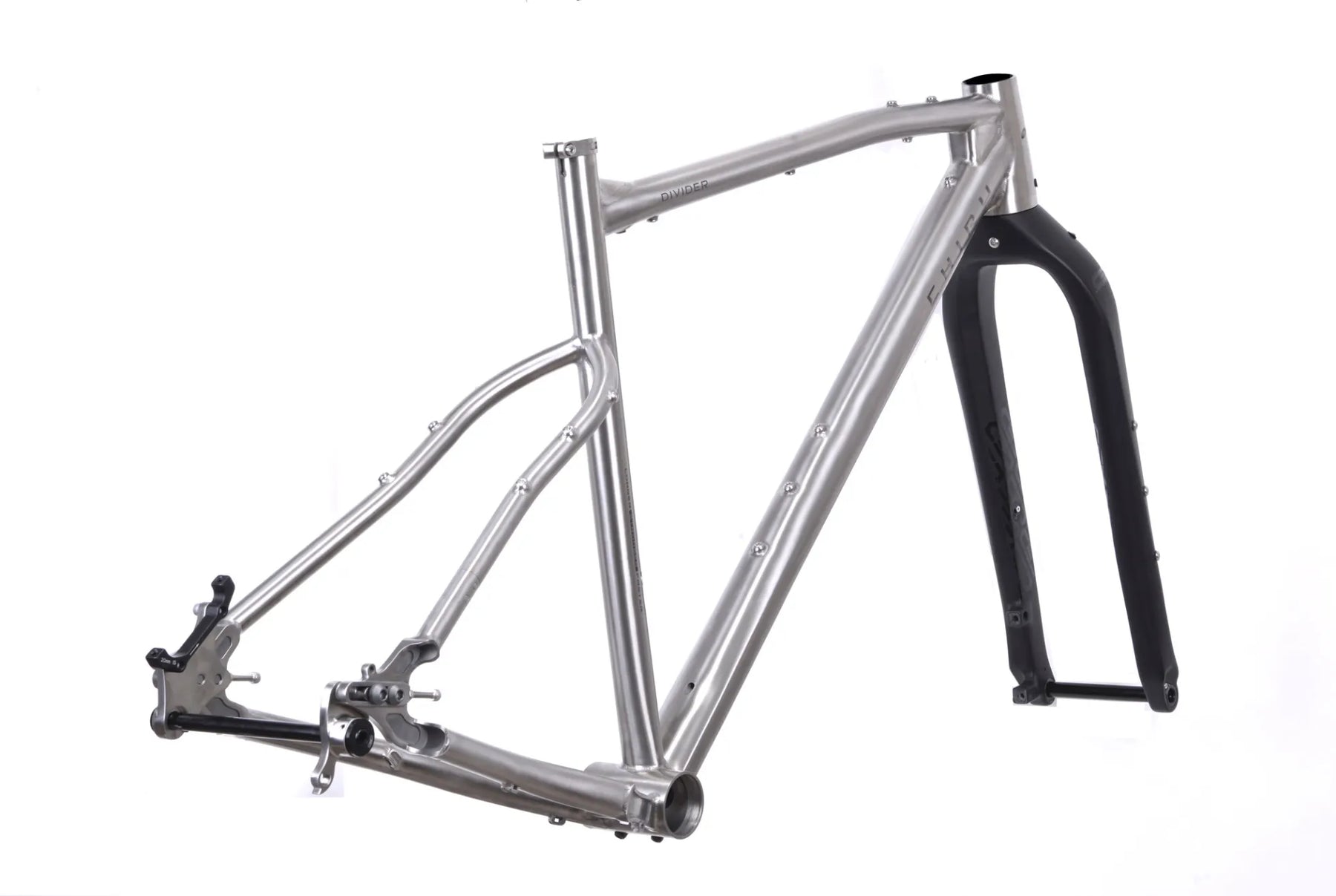

The adjustable rear drop-out allows you to adjust the chainstay length, and fit the rear wheel in the ideal position for your riding style. We even thought you might like to run it single speed with a Chain or a Belt, and created a beautifully crafted Split stay.

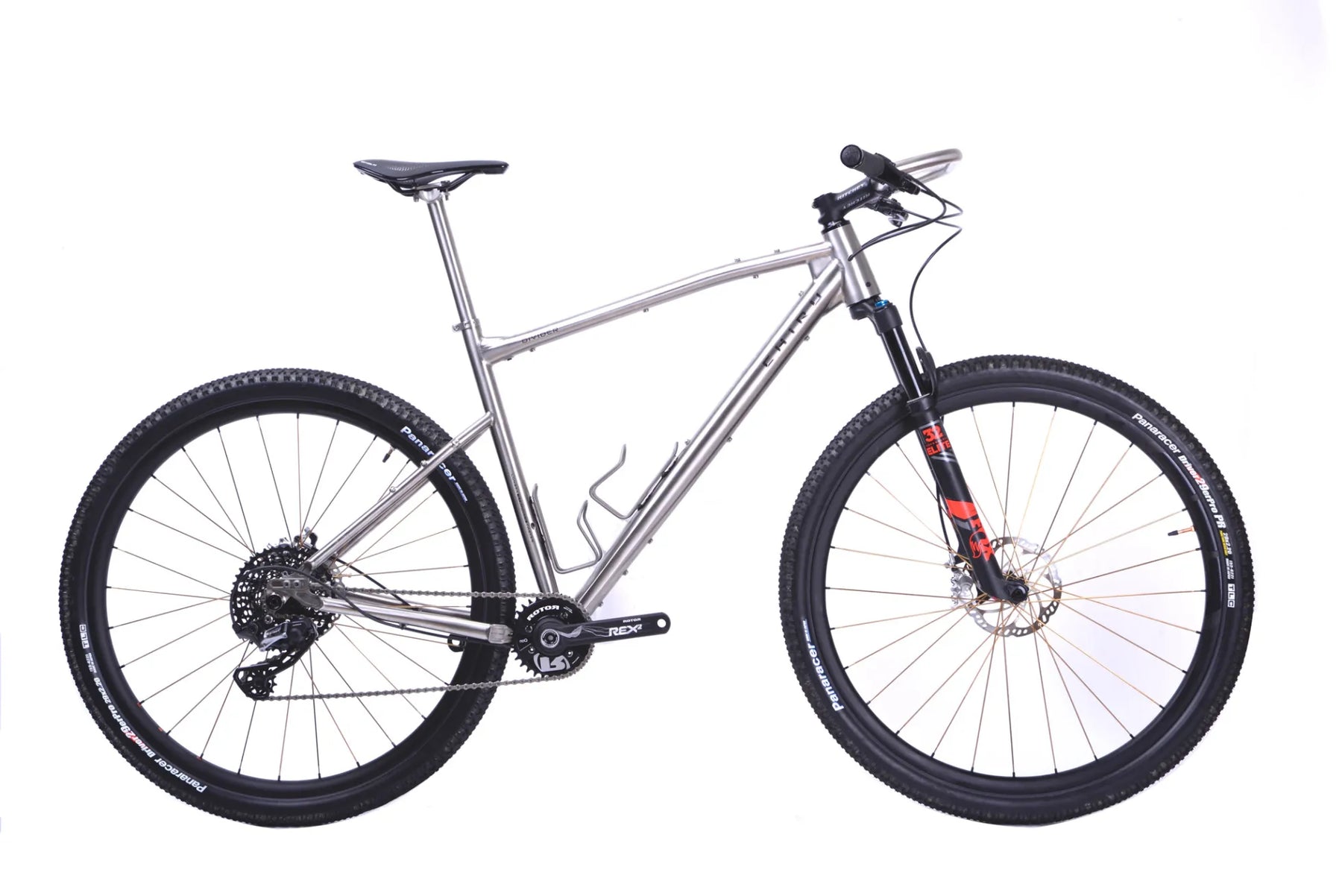

The frame geometry is compatible with a Rigid fork or a 100 – 120 mm front suspension fork.

The Divider is taking bikepacking adventure and trail riding to the next level!

3-4 week delivery depending on availability.


  • Brushed Finish Titanium 3Al/2.5V, grade 9
  • Max Tyre Size: 27.5″ x 3.0″, 29″ x 2.8″
  • Sliding Rear dropout: 15mm adjustable
  • Rear Thru axle: 148mm x 12mm
  • T47 x 85.5mm Bottom Bracket
  • Split seat-stay for Belt compatibility
  • Eyelets for 3 bottle holders, rear rack, bolt on top-tube bag & frame bag

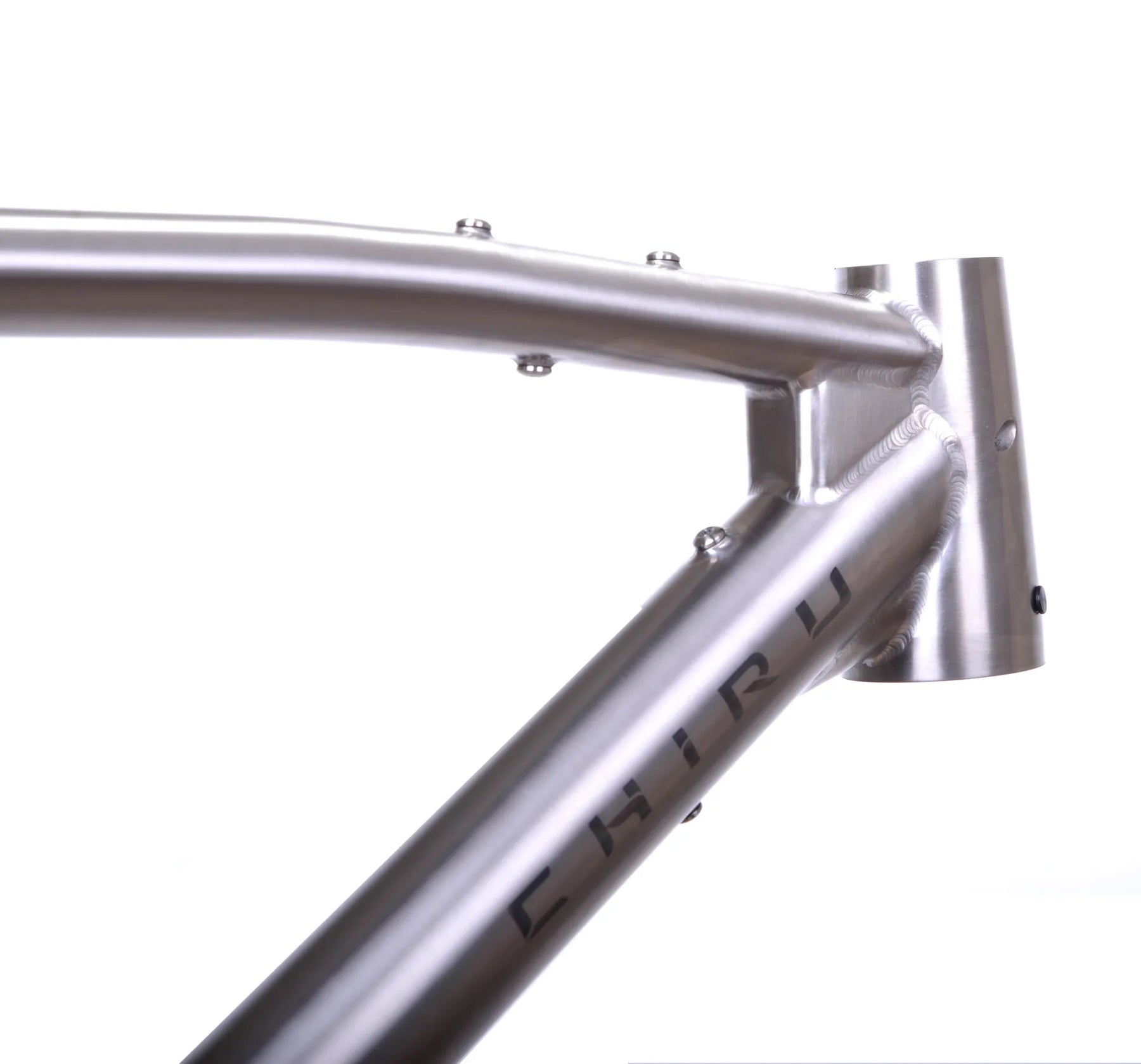

  • Semi-integrated headset: ZS56/44
  • External cable routing under chainstay
  • Internal D/T cable routing for seat-dropper, rear derailleur and brake
  • Seat post dia: 27.2mm, Seat clamp: 31.9mm
  • Max front chainring: 36T ; MTB Boost crank, 52mm chainline

    Frame Geometry

    Divider S M L XL
    TT : Effective Top Tube (mm) 595 610 625 640
    CT : Seat Tube Length (mm) 450 470 510 540
    RC : Chainstay Length (mm) 430-445 430-445 430-445 430-445
    WB : Wheelbase (mm) 1124 1134 1154 1166
    BB : BB drop (mm) 60 60 60 60
    HT : Head Tube Length (mm) 100 110 120 130
    SA : Seat Tube Angle (deg) 73.5 73.5 73.5 73.5
    HA : Head Tube Angle (deg) 68.5 69 69 69
    Reach (mm) 414 426 438 463
    Stack (mm) 610 622 630 641
    Recommended Height (cm) 163-173 173-180 180-190 190+

    Geometry calculated with A-C of 510mm, 51mm offset

    Frame Options

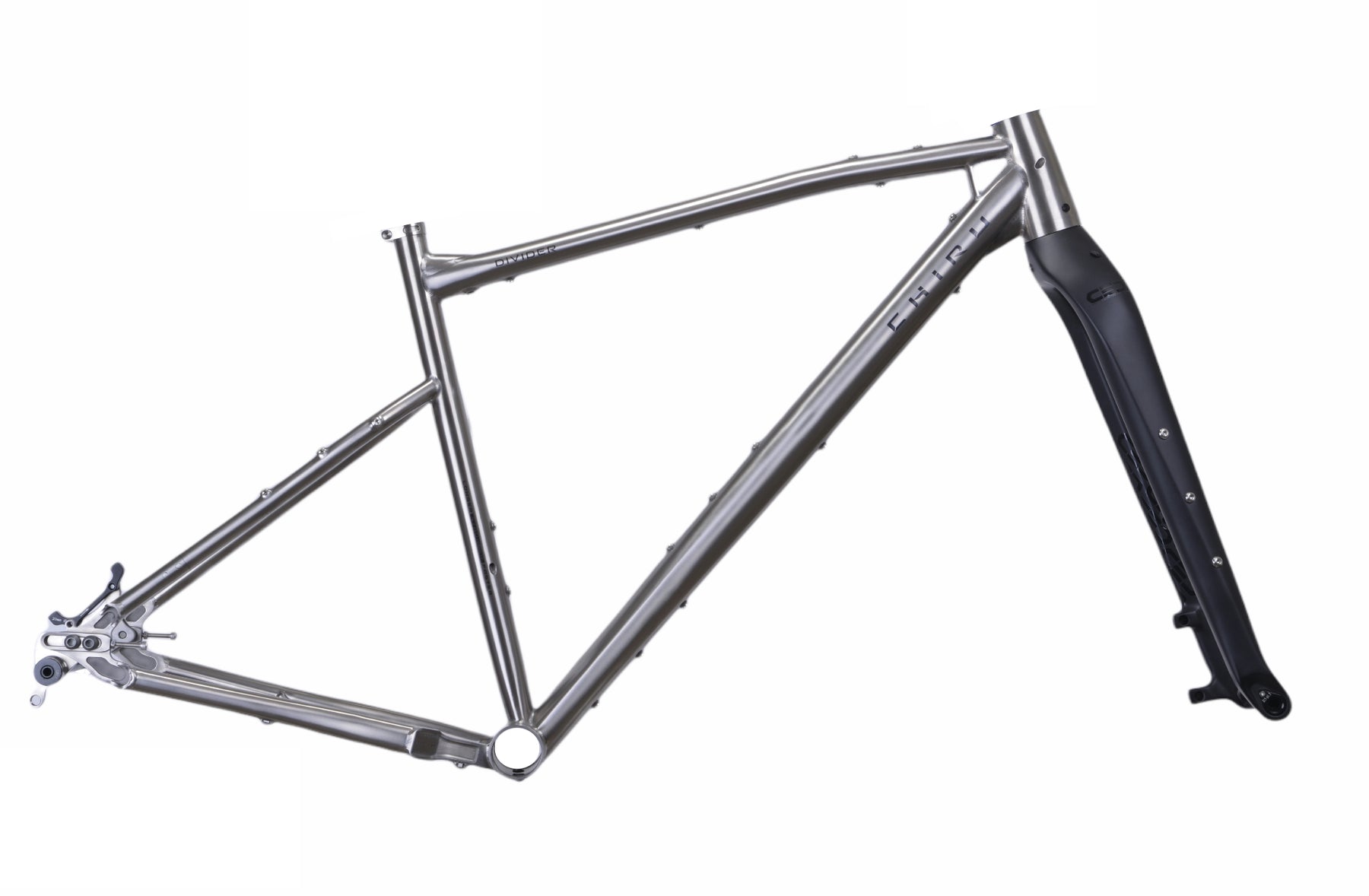

    Available as a Frame Only or Frameset Kit incl. fork

    Frame Only:

    $5200
    • Titanium Frame 3Al/2.5V, grade 9 & cold-formed tubing
    • CEC Headset: ZS56/44
    • Alloy seat-clamp included or upgrade to titanium
    • Weight (M) : 2.2kg

    Optional: Frameset Carbon Fork: CEC #485+

    Tapered steerer, Post Mount 160mm, 15 x 110mm axle, 580gm, A-C: 485mm

    Front brake and Dynamo cable internal routing, fender mount & 3 eyelets each leg for cage mounts

    + $450

    Optional: Frameset Titanium Fork: CEC #475T+

    Tapered steerer, Flat mount 140 or 160mm, 15 x 110mm axle, 785gm, A-C: 475mm, 50mm offset

    Tyre Clearance: 29 x 2.35″ / 650b x 2.4″

    Front brake and Dynamo cable internal routing, fender mount & 3 eyelets each leg for cage mounts (3kg / side)

    + $1500

    Prices for Forks only valid when purchased with Frame. All pricing is in $NZD and includes Shipping and GST. Prices valid through 2024.
